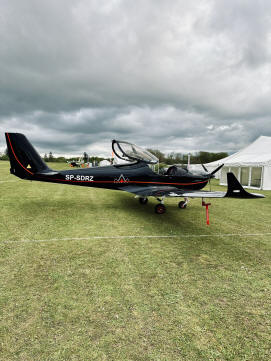

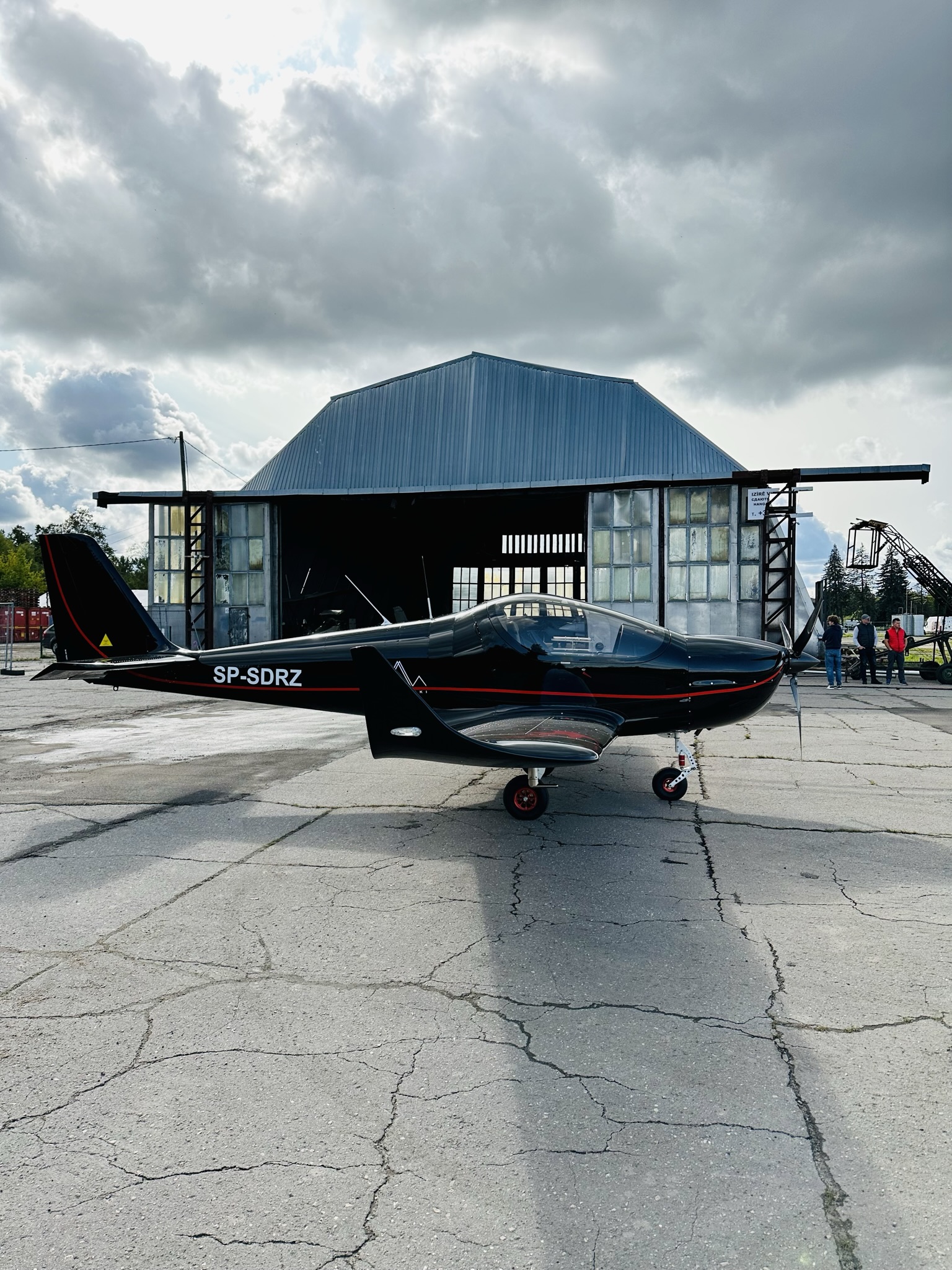

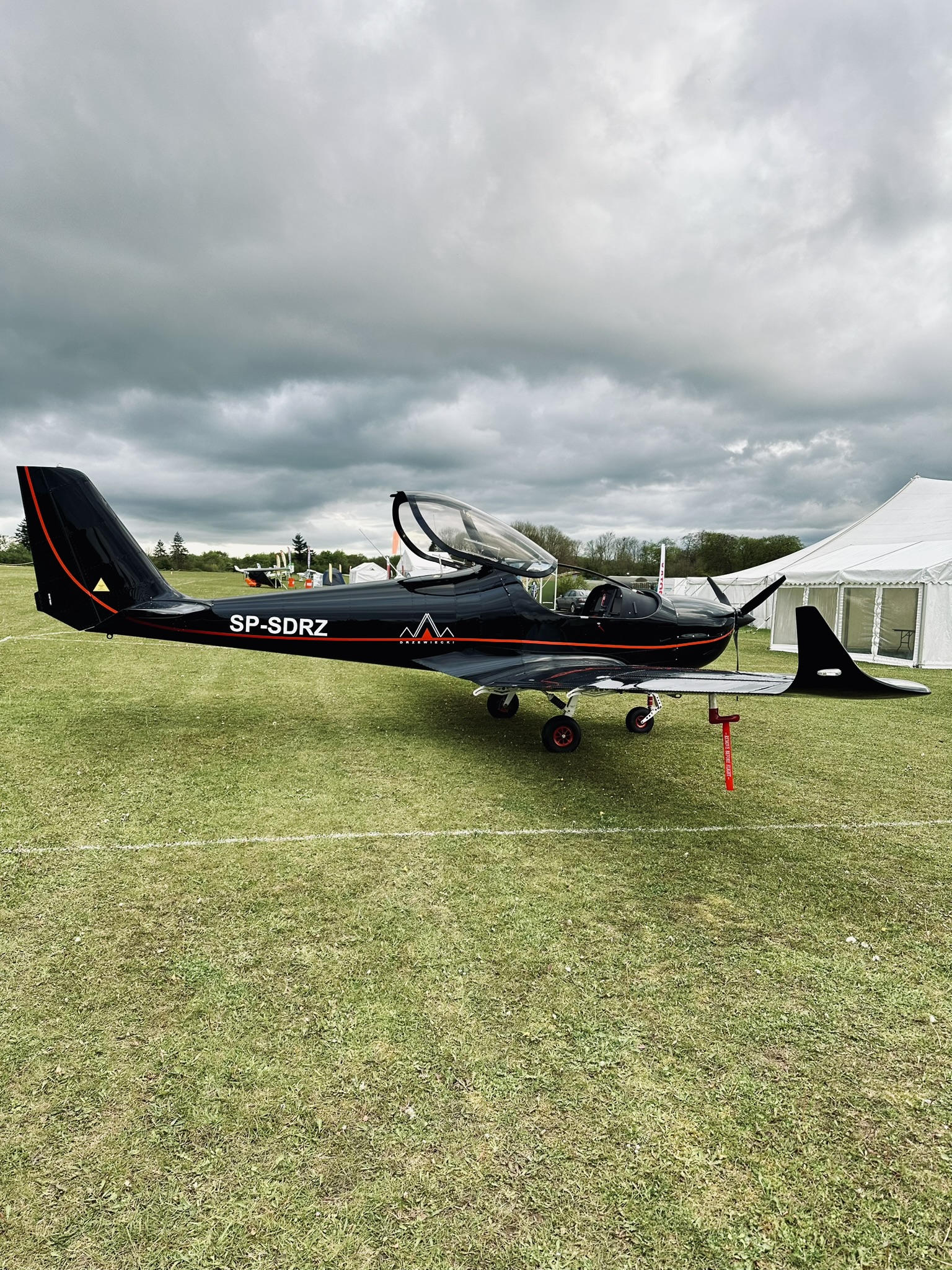

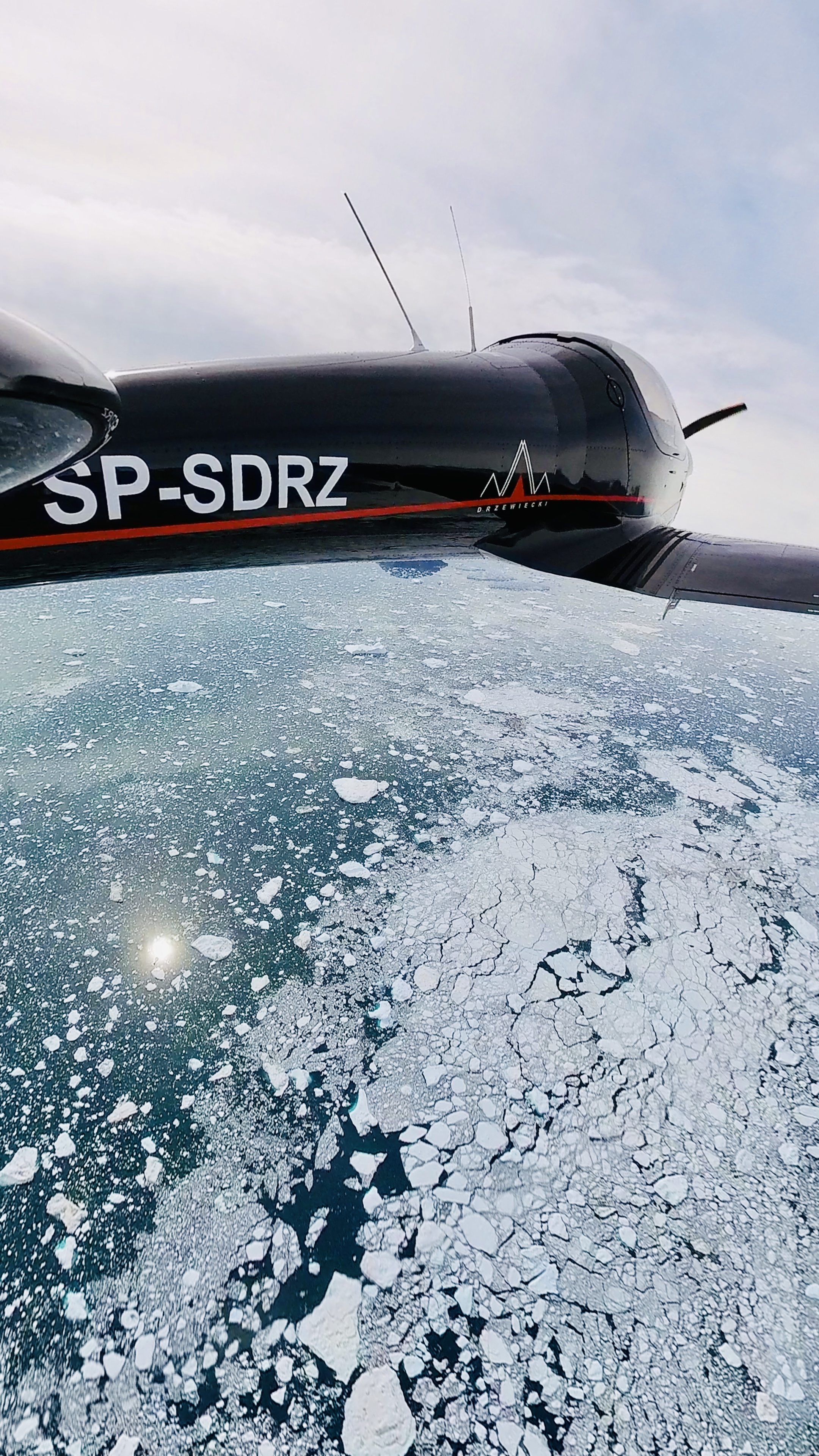

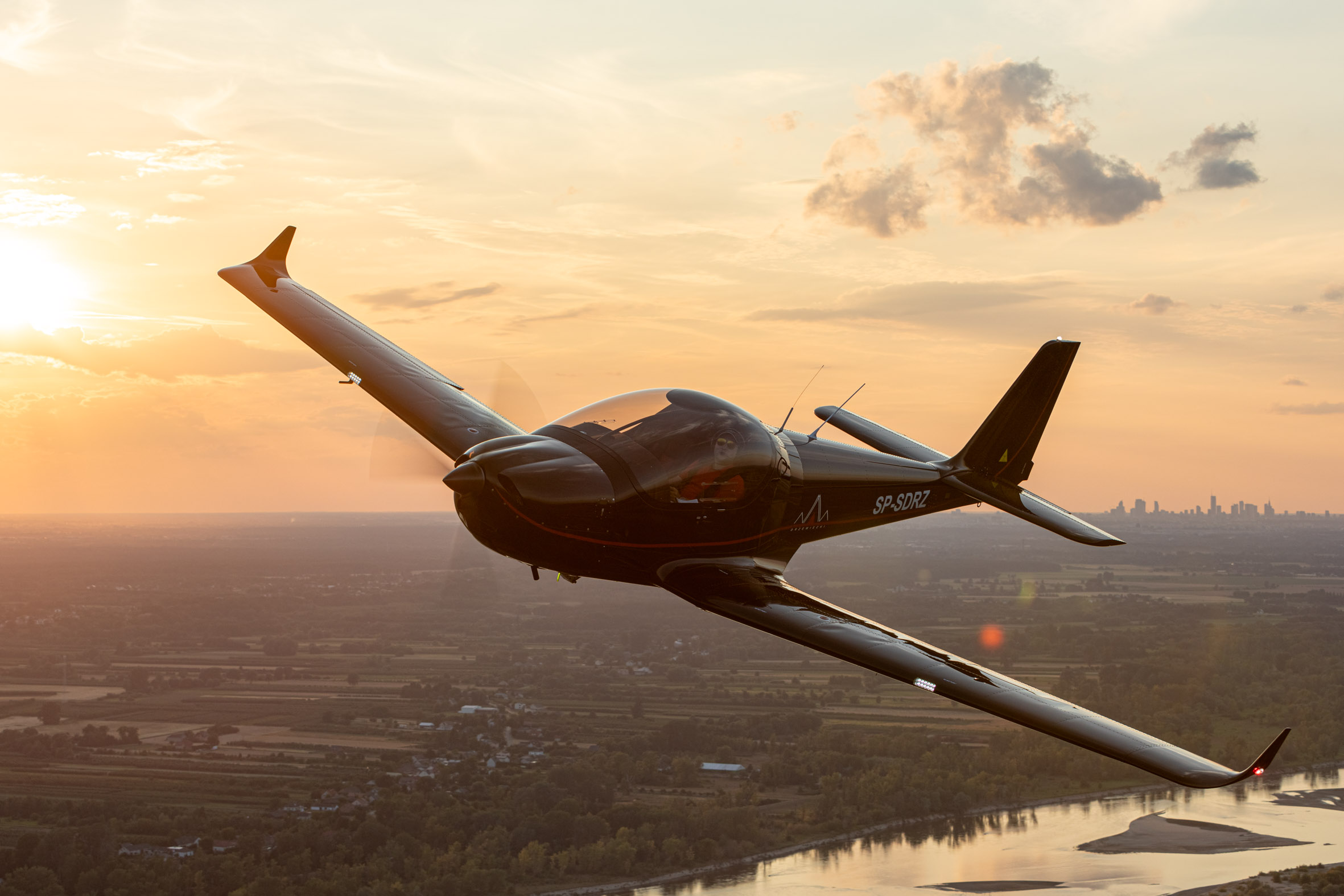

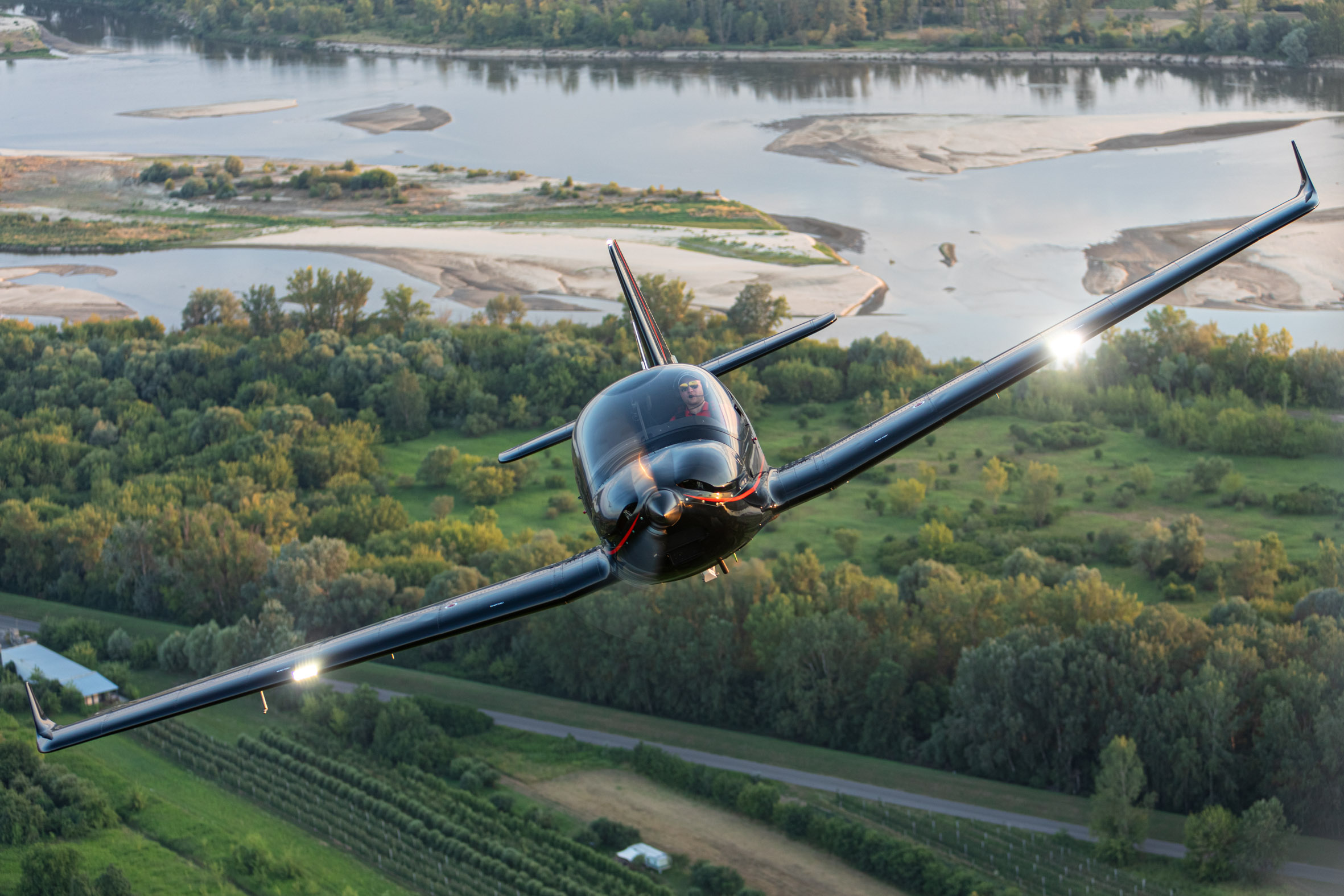

Since 2022 Drzewiecki
Design owns a
Skyleader 600
aircraft with SP-SDRZ registration, used for collecting aerial photo/video resources with
several external cameras; capturing on-ground airport details
and testing approaches in terms of visual coherence with sim
models; fast business travels to „remote” locations;
advertisement, marketing, and building brand awareness among
aviators and the general public. The aircraft is configured as a
cruiser with a high-end avionics suite and Night-VFR
certification.

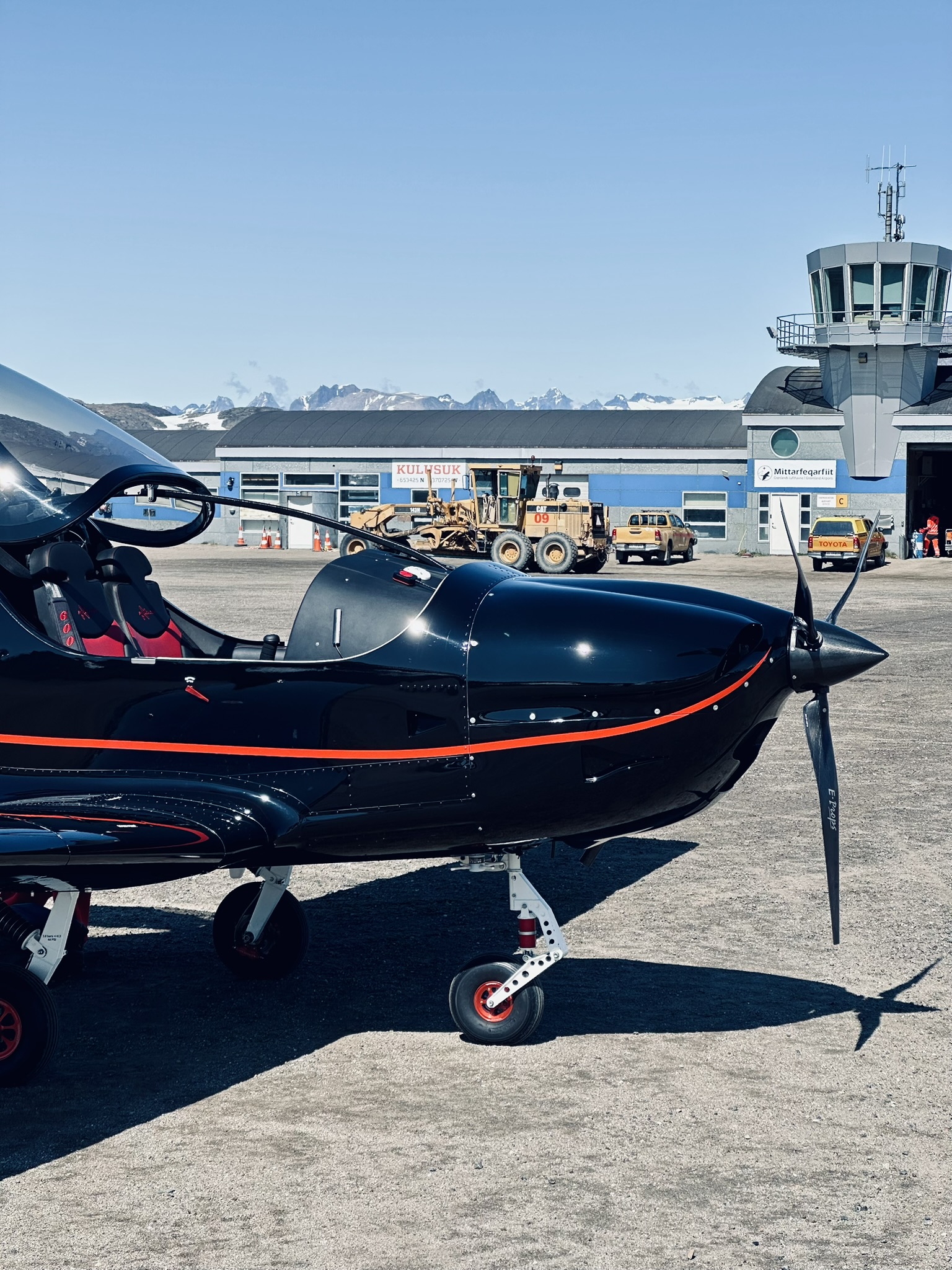

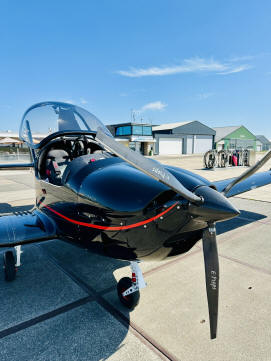

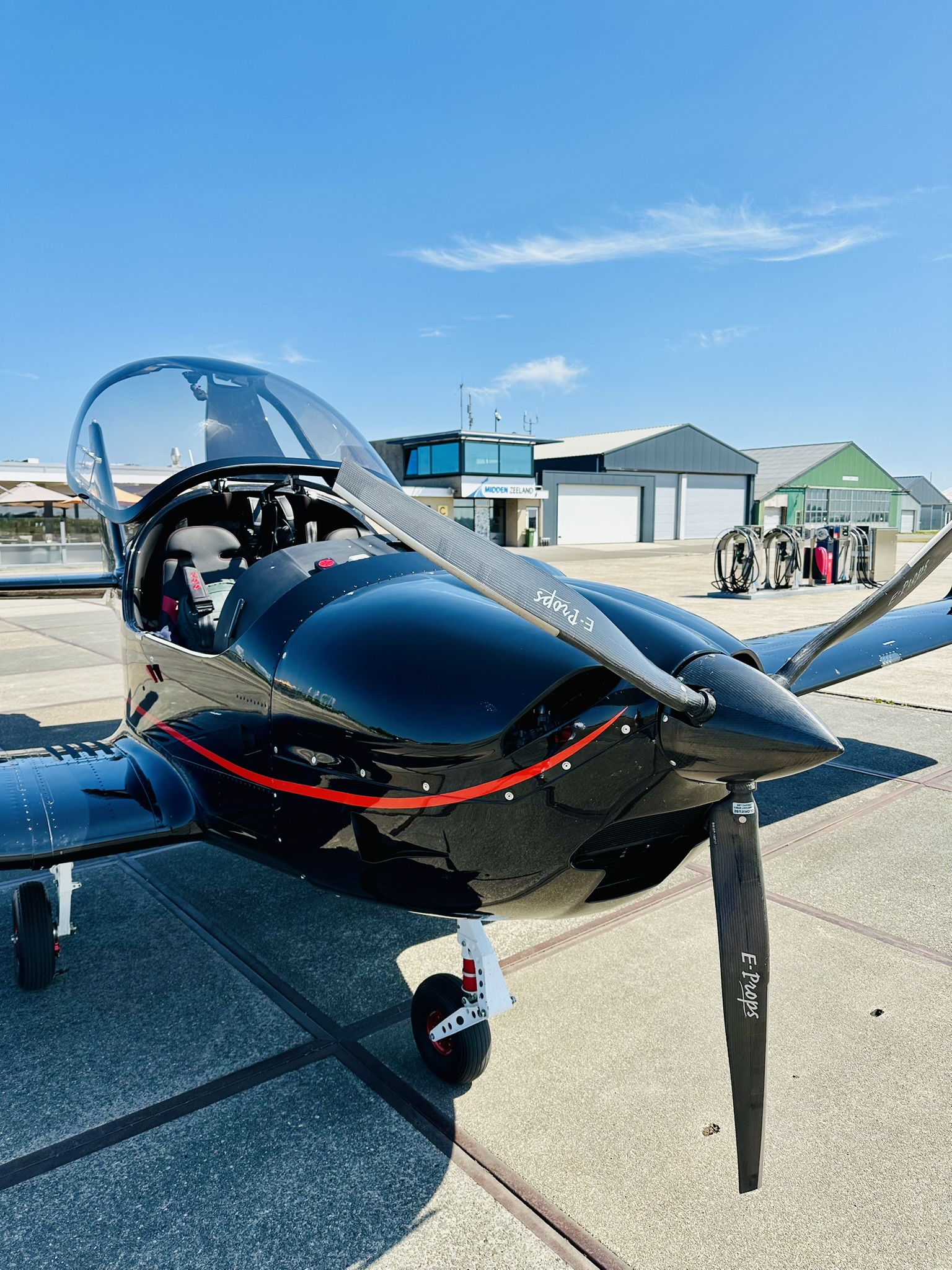

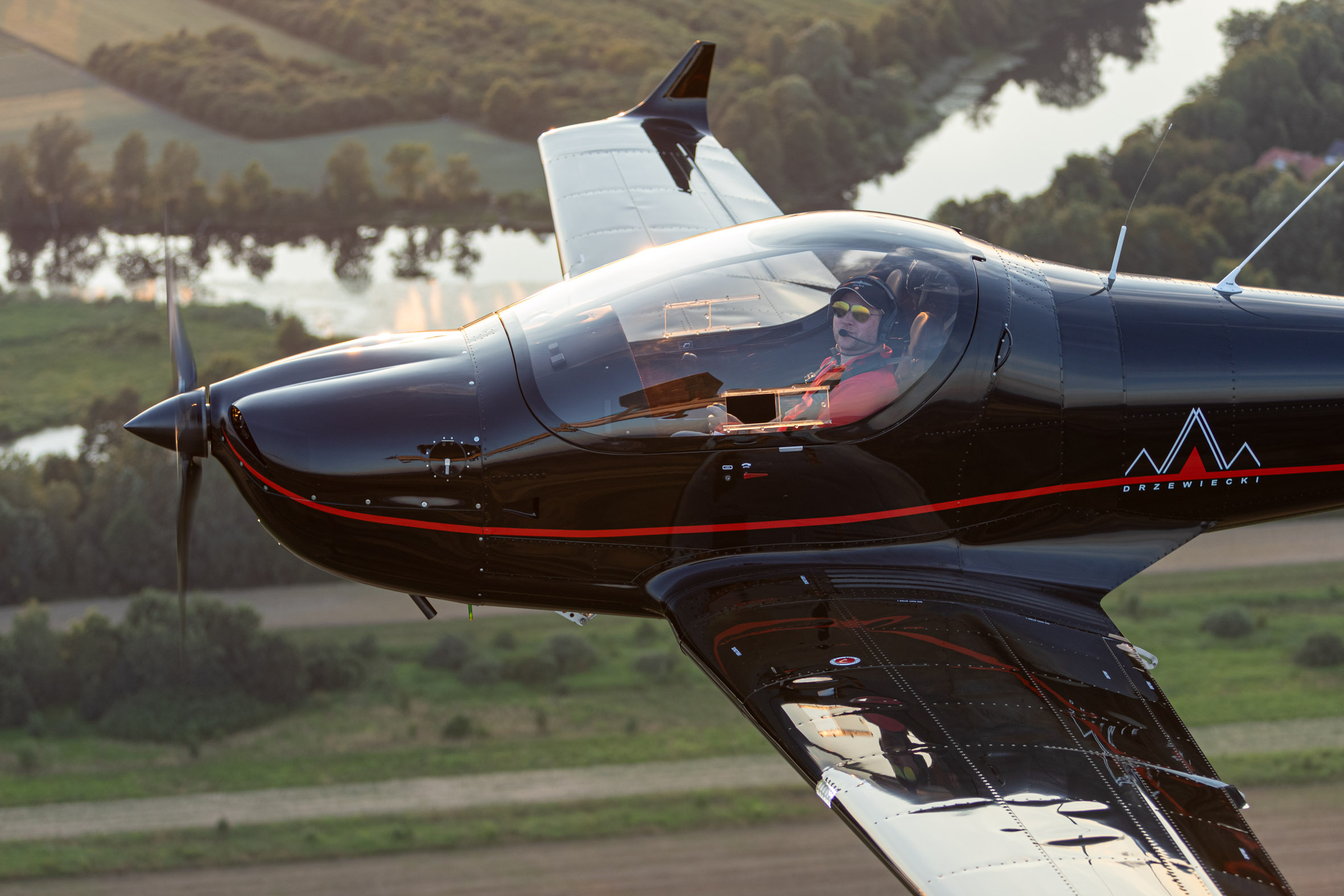

Skyleader 600 is
produced by Zall Jihlavan Airplanes s.r.o in Jihlava, Czech

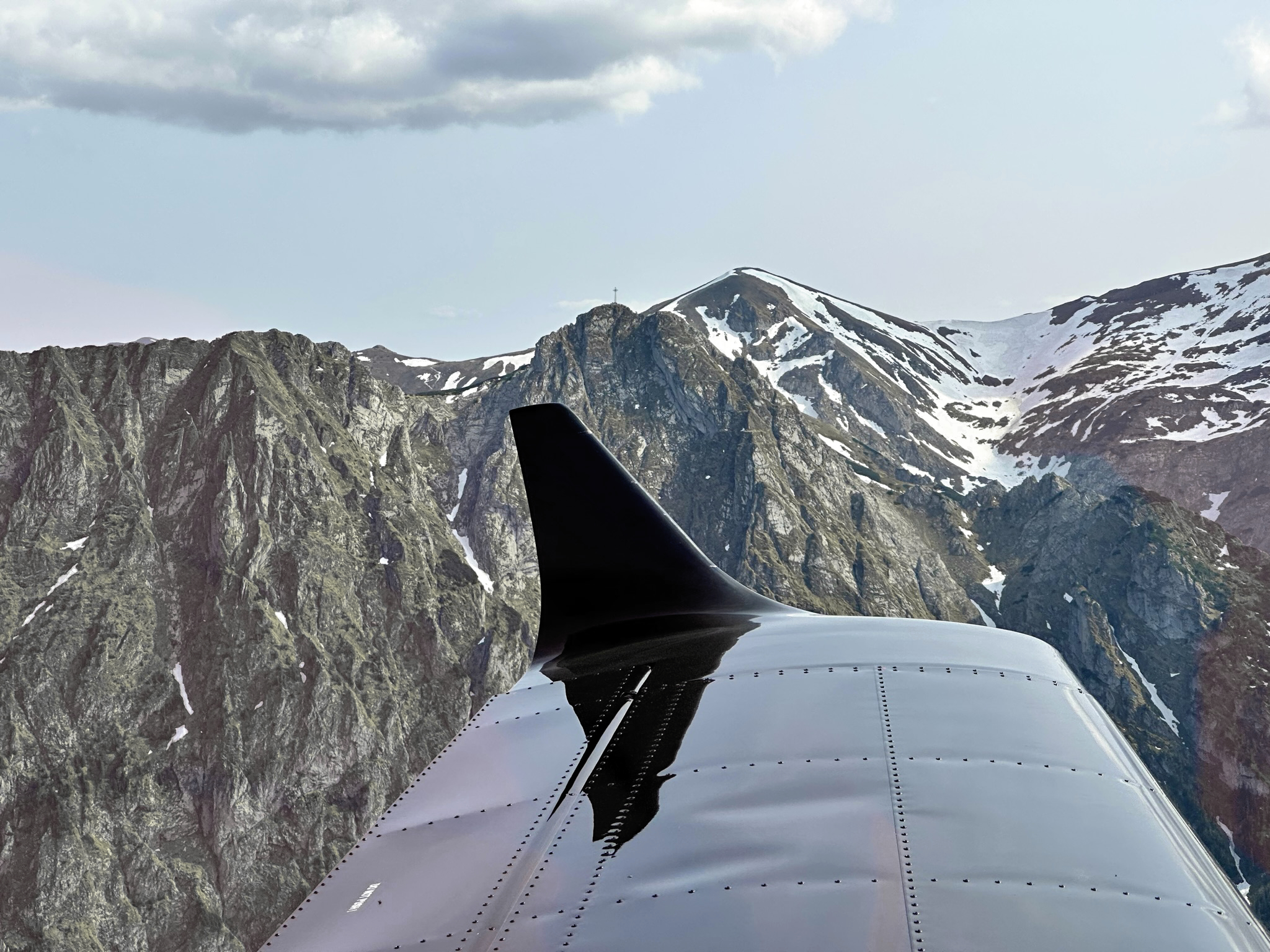

Republic. It is an all metal two-seat, low wing constructed
aircraft with a trapezoidal wing. The aircraft has a tricycle
retractable landing gear and a steerable nose wheel. Skyleaders
are designated mainly for recreational flying, pilot training
and special operations. The -600 model was introduced in 2010.
Specifications:
-
Dimentions:
wingspan 9.9 m / 32 ft 4.5 in , lenght 7.1 m / 23 ft 3.5 in,
height 2.46 m / 8 ft; cabin width 128cm / 4th 2 in
-
Powerplant: Rotax
912iS Sport 100HP with direct fuel injection and an
electronic engine management unit
-

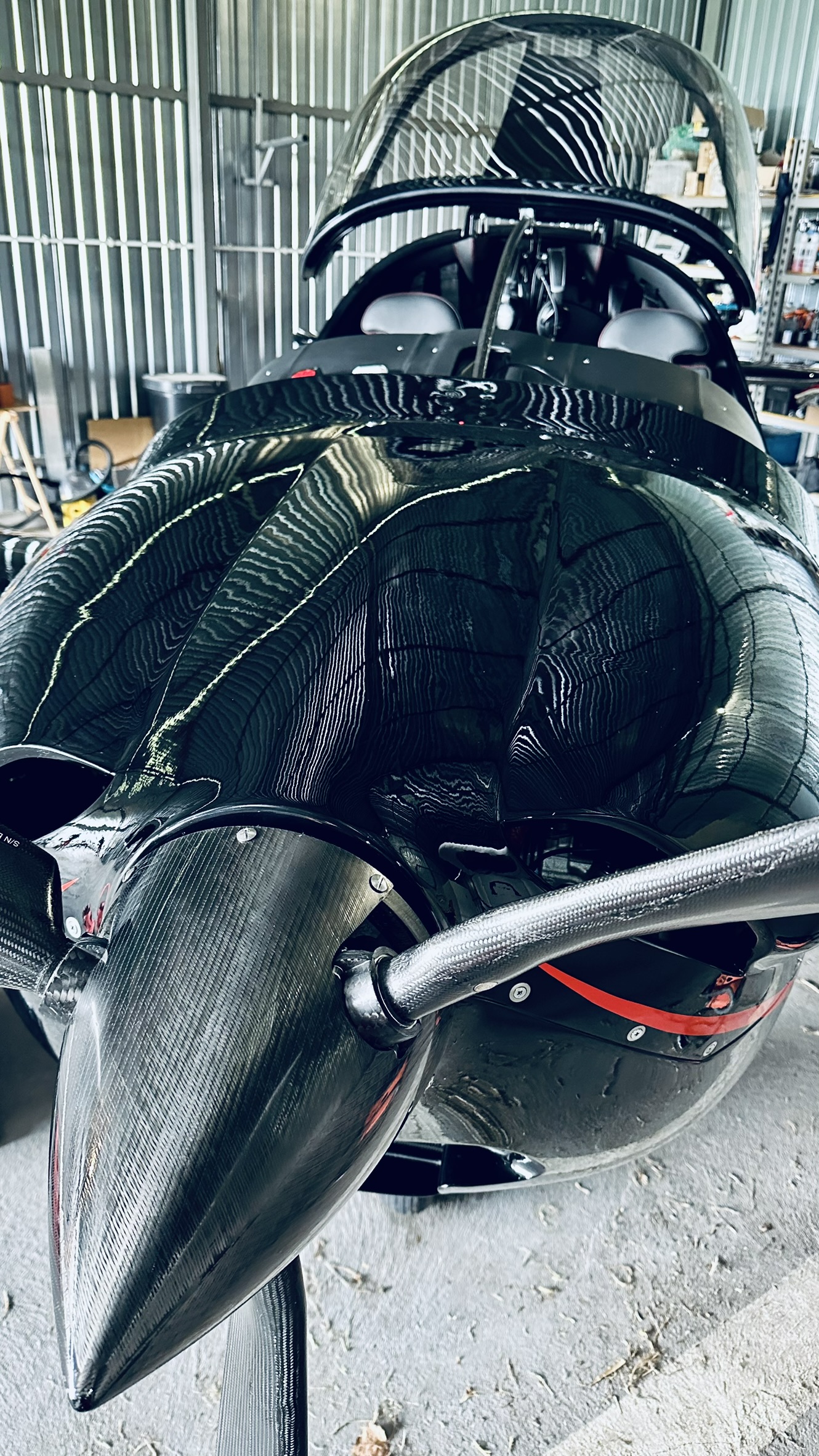

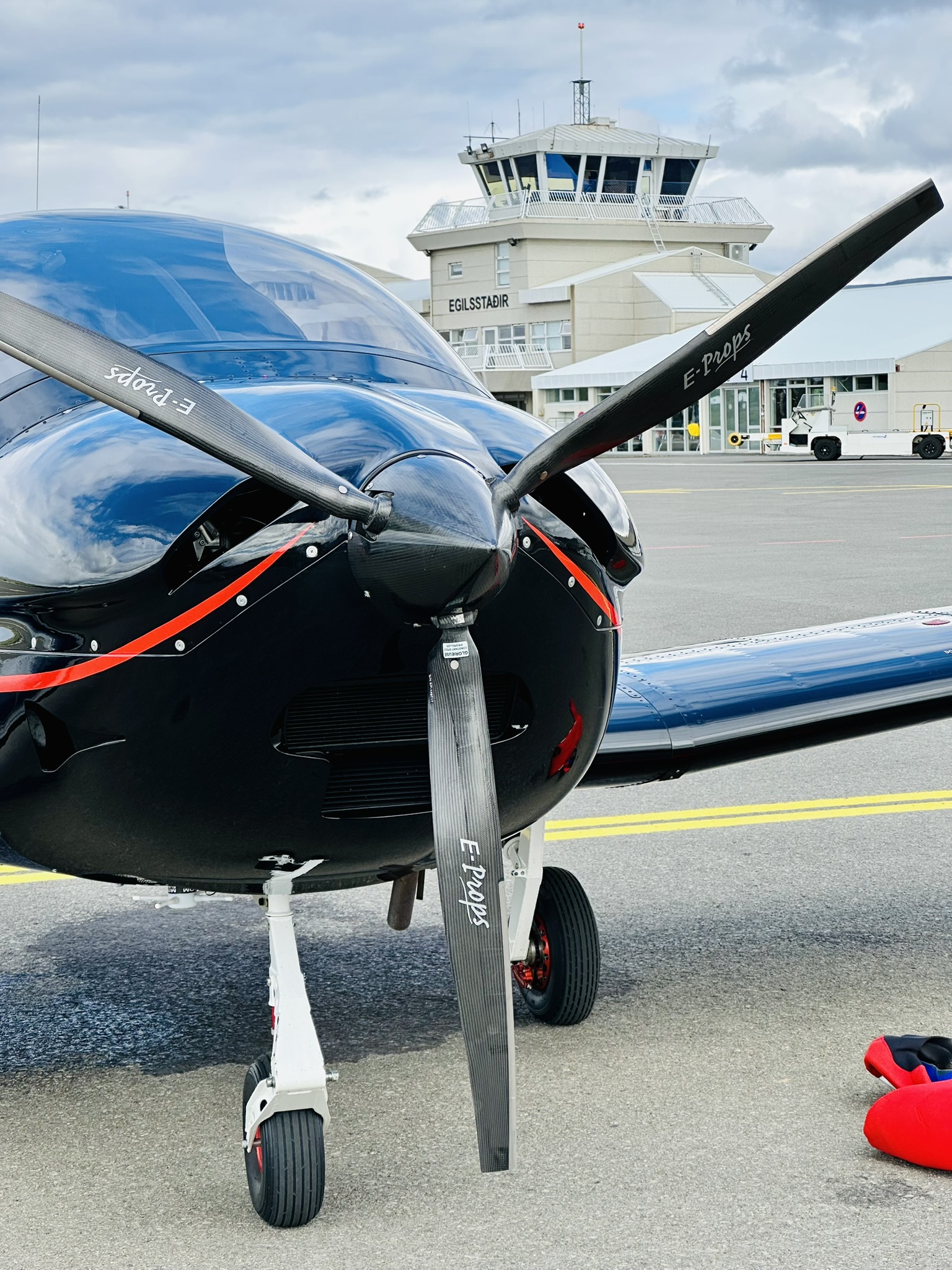

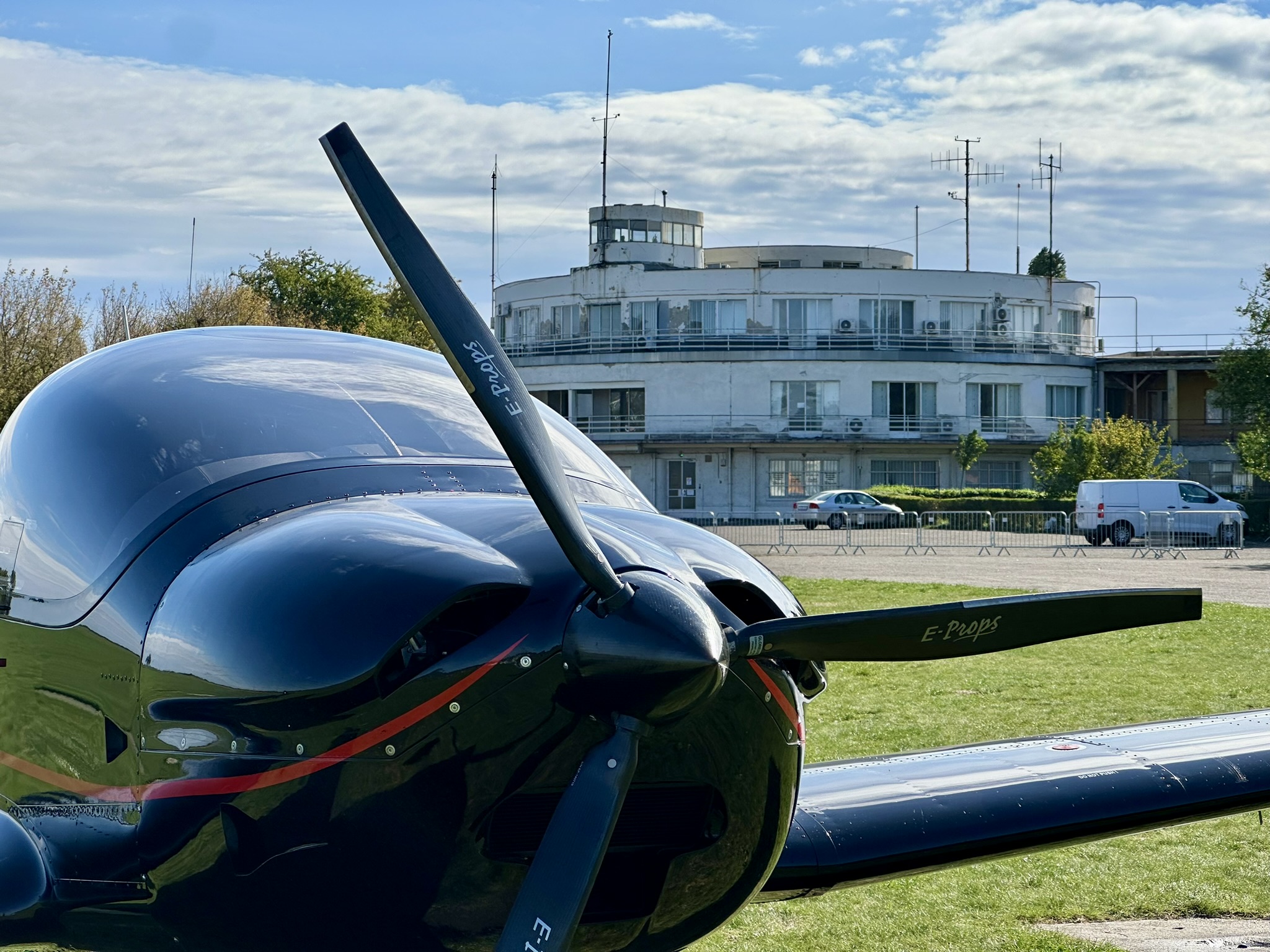

Propeller:
E-Props Glorieuse, constant speed (hydraulic actuator with
electronic management)
-
Performance: VNE
265 km/h / 143kts, VS0 61 km/h / 33kts, cruise 200 km/h /
108kts
-
Weight: MTOW
600kg, empty 390kg, max luggage 30kg
-
Fuel: capacity:
120l / 32 US gas, potential endurance 1600km / 860nm,
consumption 12-16l/h cruise, 6l/h to keep 1000ft altitude
-
Connectivity: 1st
class transponder with dual-ADSB, ADL200 unit for Iridium
weather downloads and traffic information, iPad mini
cellular
-
Safety: parachute
rescue system, EFIS and EMS with individual batteries,
backup Kanardia avionics, LEVEL button, satellite
connection, traffic information, ELT, triple ADAHRS,
quadruple AHRS, manual gear extention mechanism, dual
generator + emergency battery switch
Standard equipment:
-
Cabin cover,
baggage compartment, electric fowler flaps, parking lock,
4-point safety belts, cockpit ventilation, analog compass,
handling bar
Additional equipment:
-
Engine / Prop:
Rotax 912iS (fuel injection), thermostat on coolant and oil,
E-Props Glorieuse constant speed
-

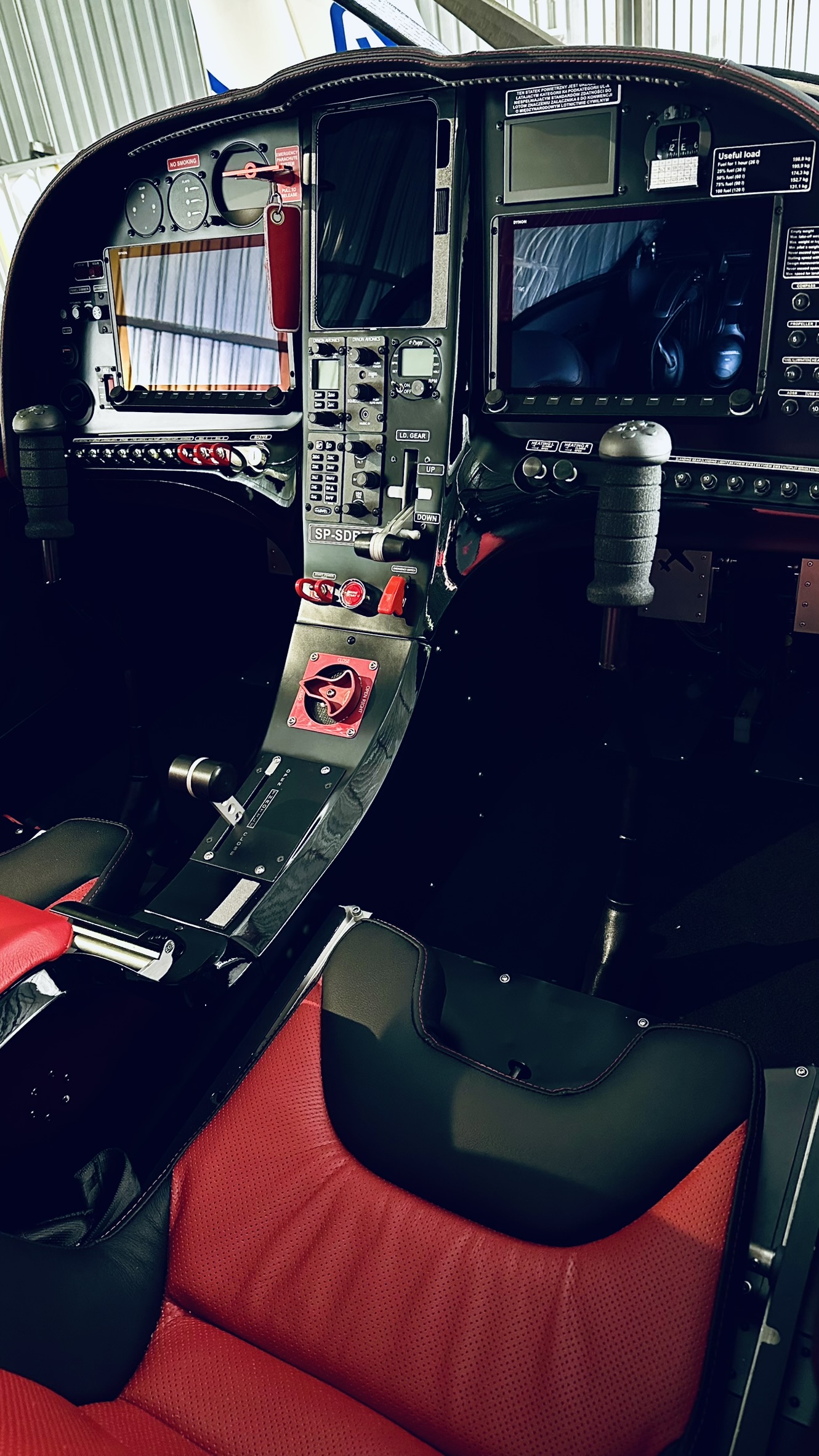

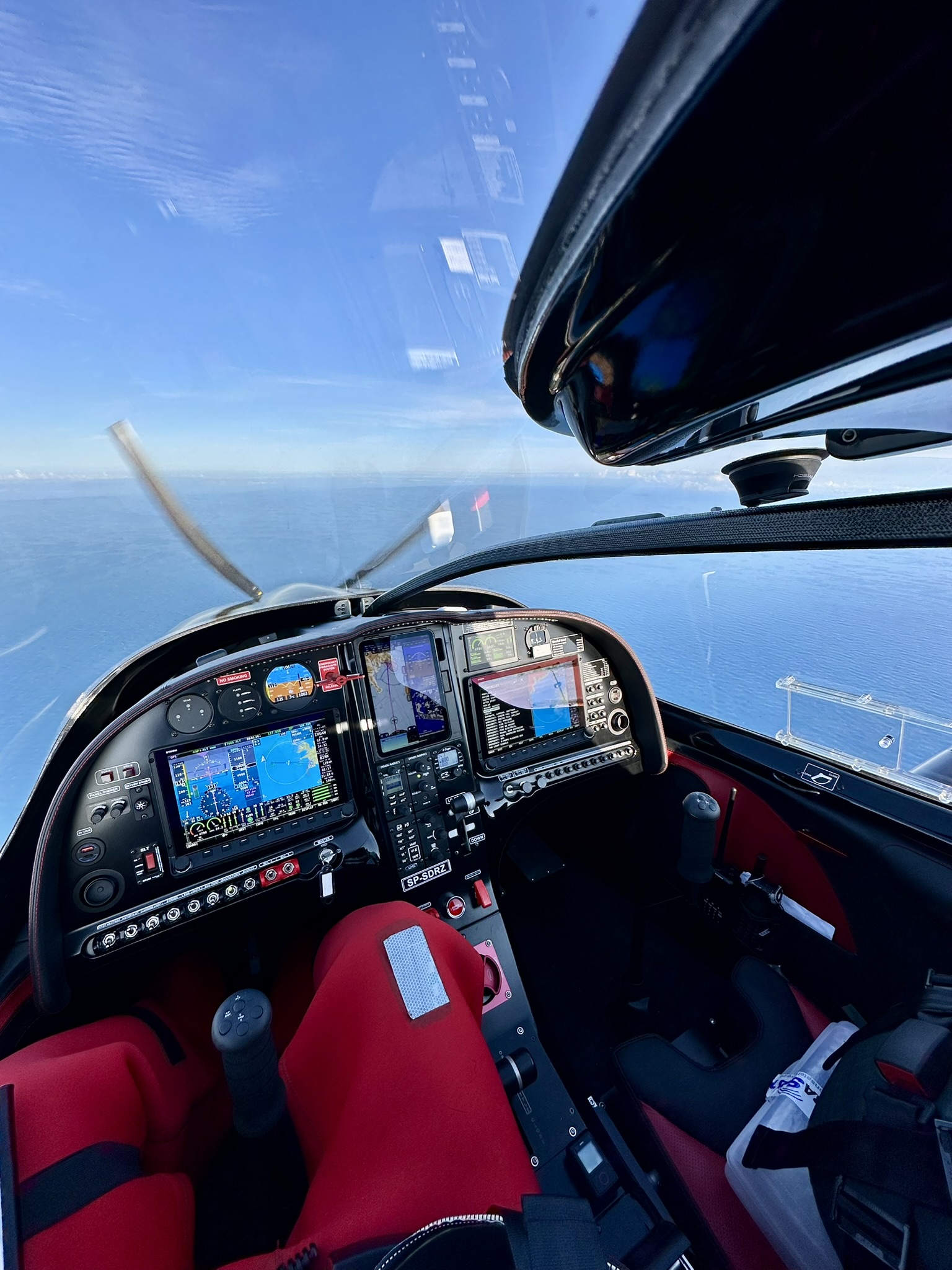

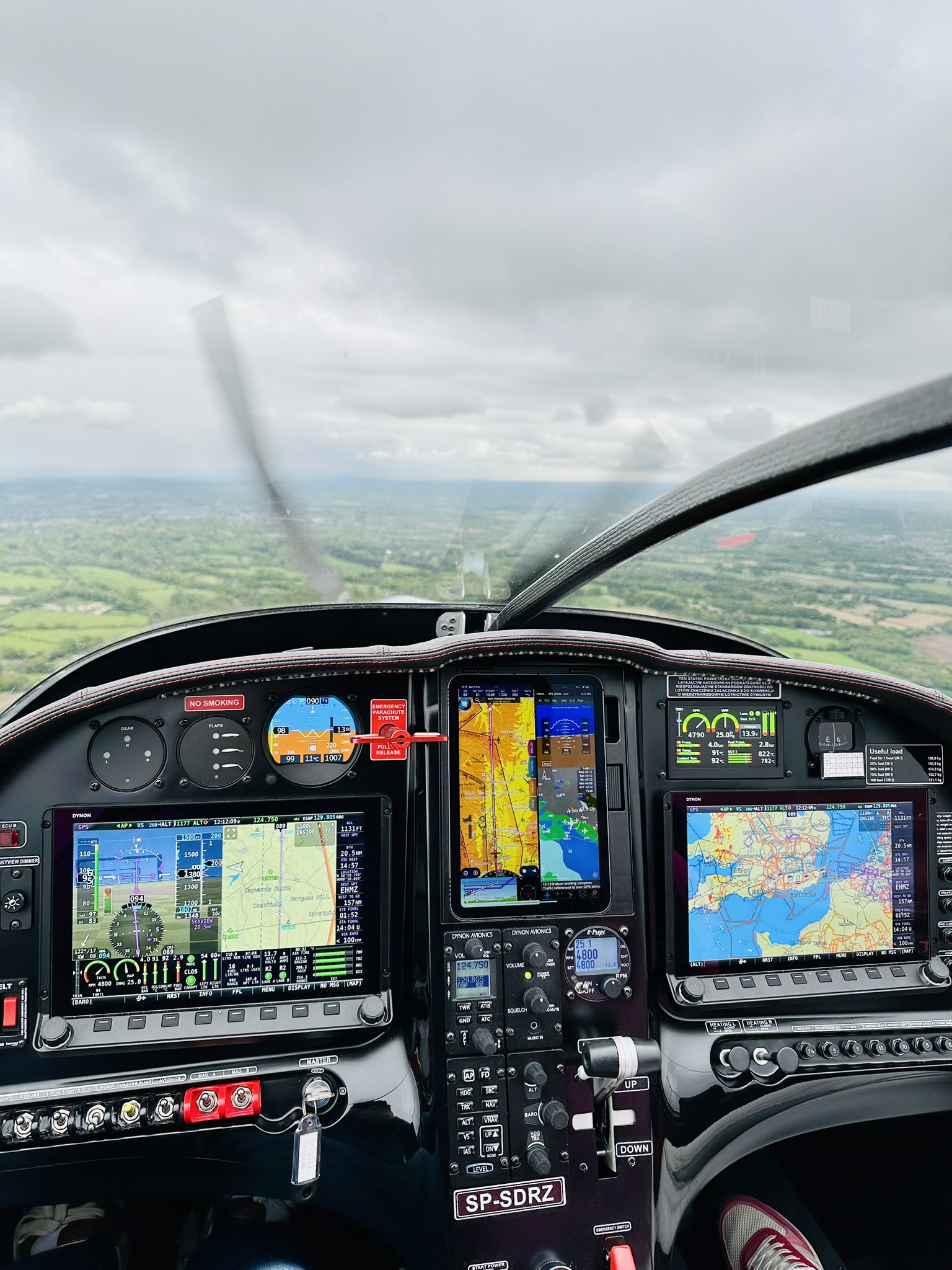

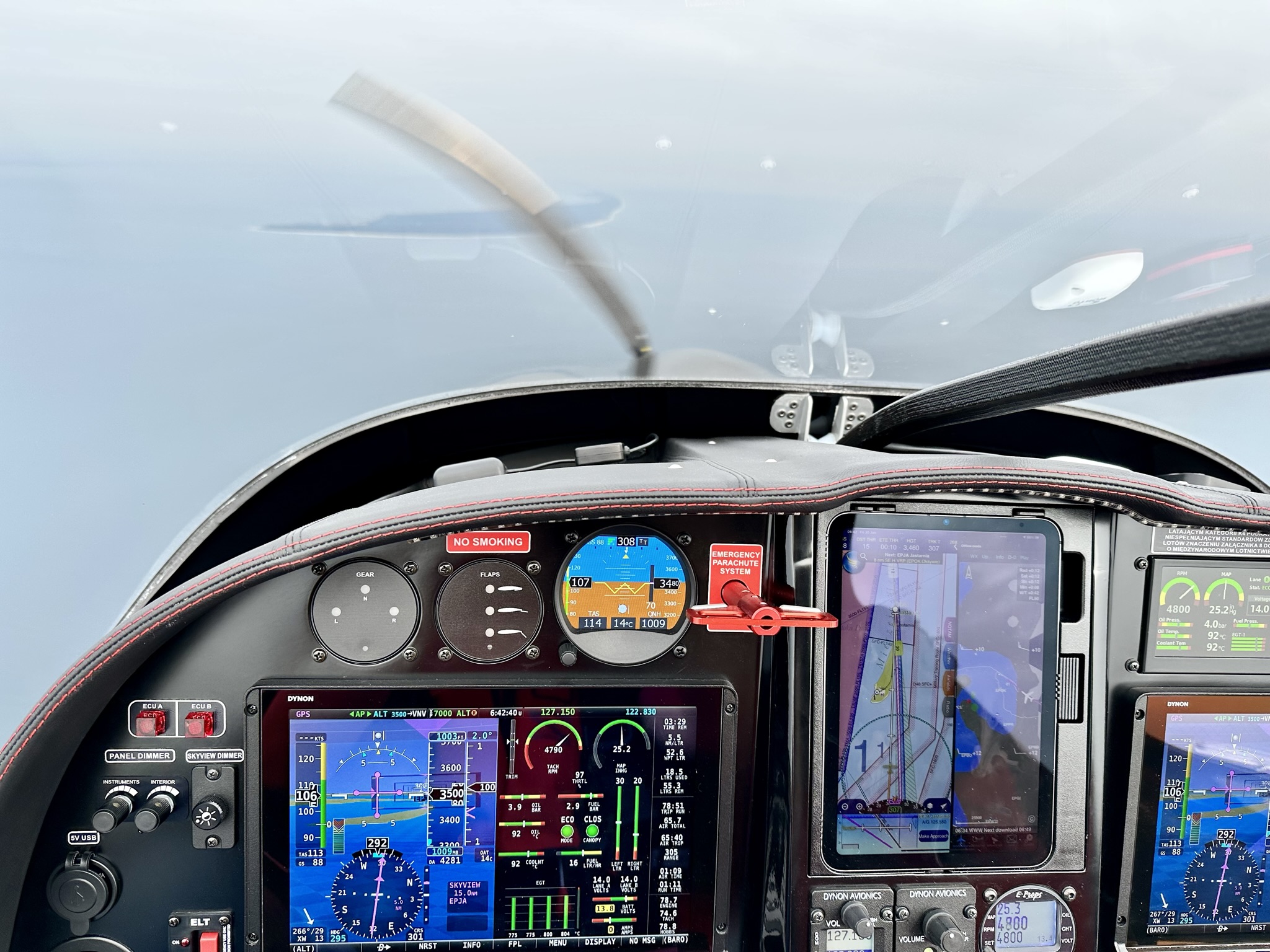

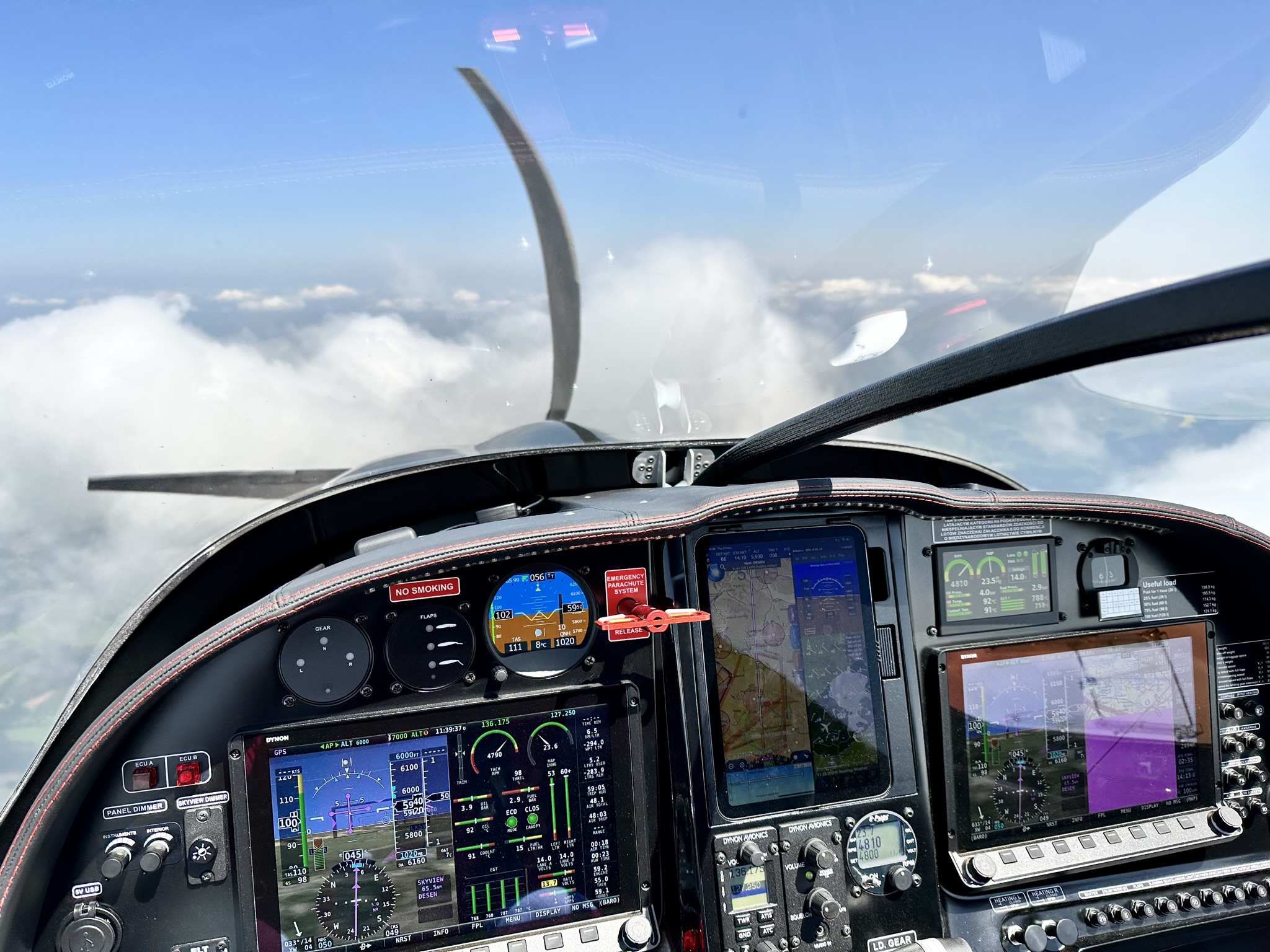

Avionics: Radio
Dynon SV-COM-X83, Dynon SV-INTERCOM-2S, Transponder Dynon
SV-XPDR 262 with antenna, Kanardia Horis 80, Kanardia DIGI,
Dynon SkyView HDX EFIS/EMS x2, Autopilot for Dynon SkyView +
autotrim, Dynon SV-AP-PANEL, Dynon SV-KNOB-PANEL, Dynon SV-KNOB-DIMMER,
iPad Mini charger and mount, ADL200 installation, ELT Kannad
406 AF
-
Indicators and
lights: 12V USB socket x2, cockpit and instruments panel
lights, strobe and position lights, dual 12xLED landing
lights
-
Outside design:
retractable gear with audio alerts, foil stripes custom
design, one-tone RAL 9005 paint
-

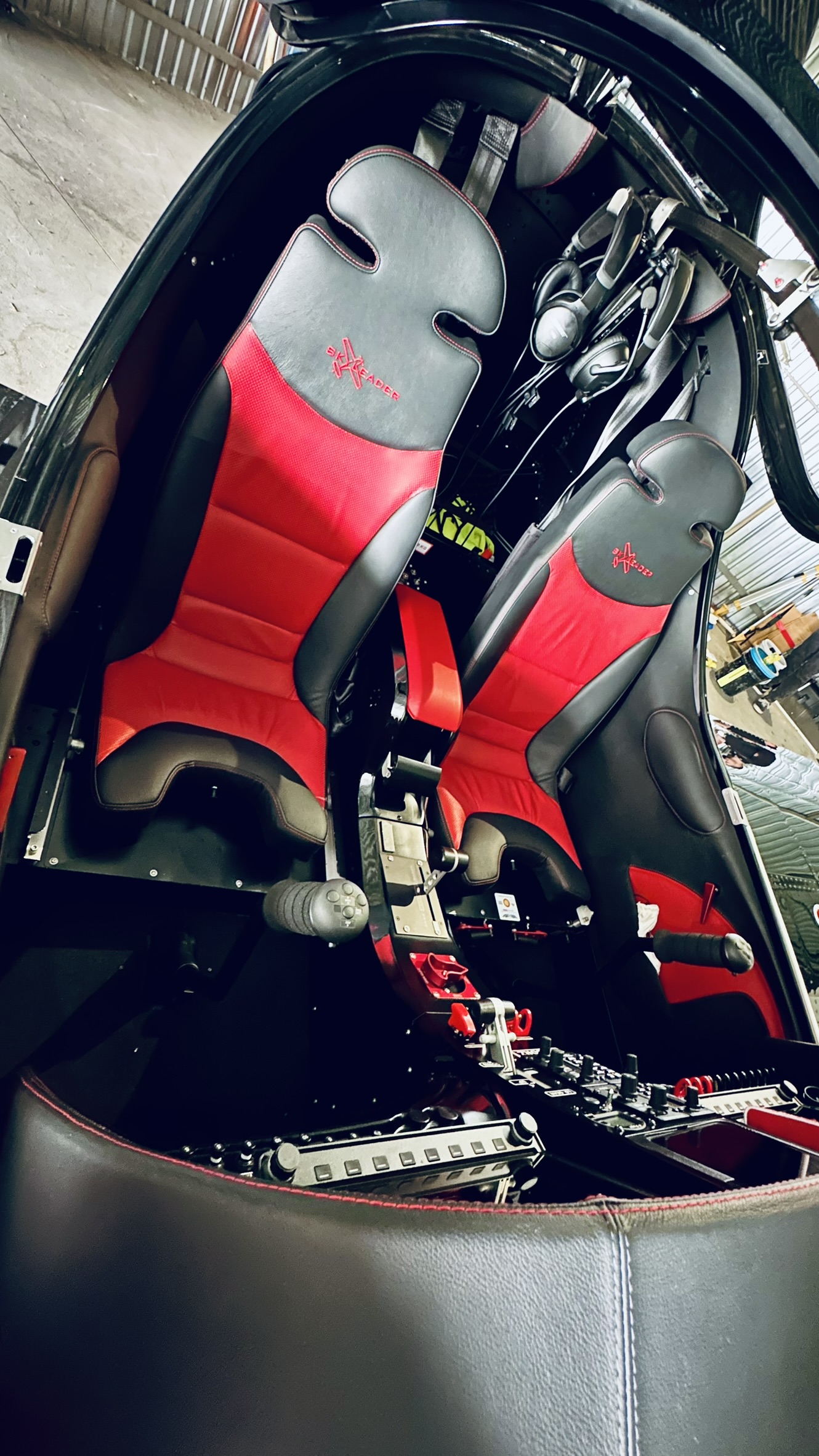

Interior: Extra
upholstered seats and sidewalls - real leather, headrest,
L/R cabin heating, dual color instrument panel (black matt /
black gloss)
-
Other: Gallaxy
Recovery System (parachute) installation, battery charger,
AirSwitch - additional safety box for RG, BERINGER brakes,
multifunctional G5/G5 control sticks
